Panasonic HL-G1 measurement sensor
Категория: Measurement sensors
High-precision laser-displacement sensors
Panasonic has developed and produced laser distance sensors for more than 20 years. Using our well established triangulation method and state-of-the-art laser technology, our sensors are able to handle high resolution measurement regardless of background color and surface conditions.

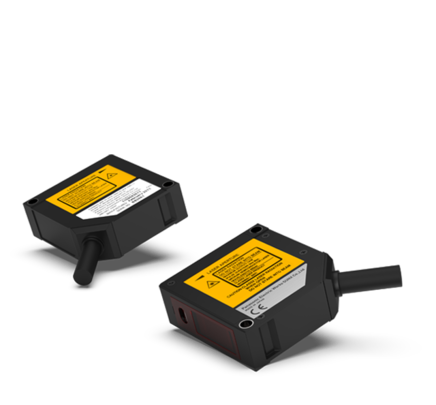

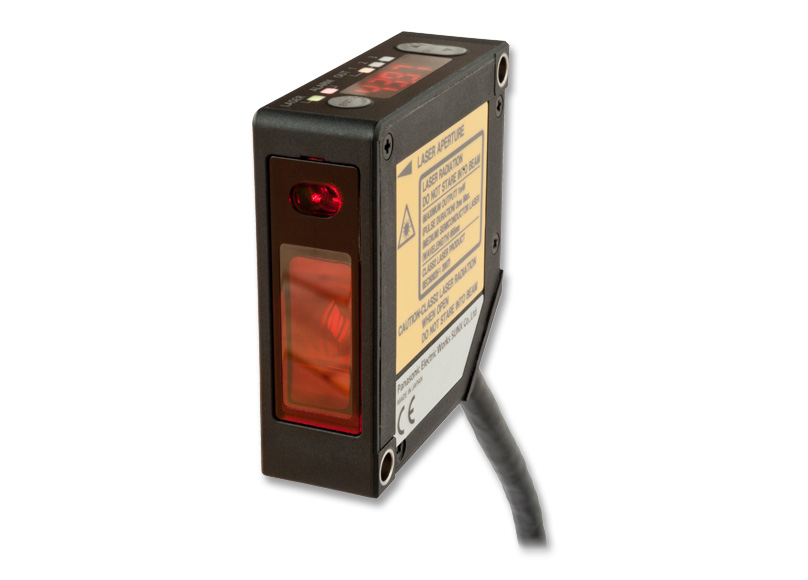

Panasonic HL-G1 measurement sensor
Although HL-G1 boasts features and performance indicative of high-end laser sensors, its price is that of a middle-class laser sensor. Such high-end features include:
- Accuracy of 0.5µm
- Integrated display for monitoring measurement results, status and settings
- 3 transistor outputs, 2 analog outputs and serial output (high-functionality type)
- New CMOS receiving element that has revolutionized high accuracy
Options:
- Cables 2m, 5m, 10m, 20m
- Touch panels (Panasonic AIG02Q14D/AIG02MQ15D)
- Touch panels (Panasonic AIG12GQ14D/AIG12GQ15D/ AIG12MQ14D/AIG12MQ15D)
