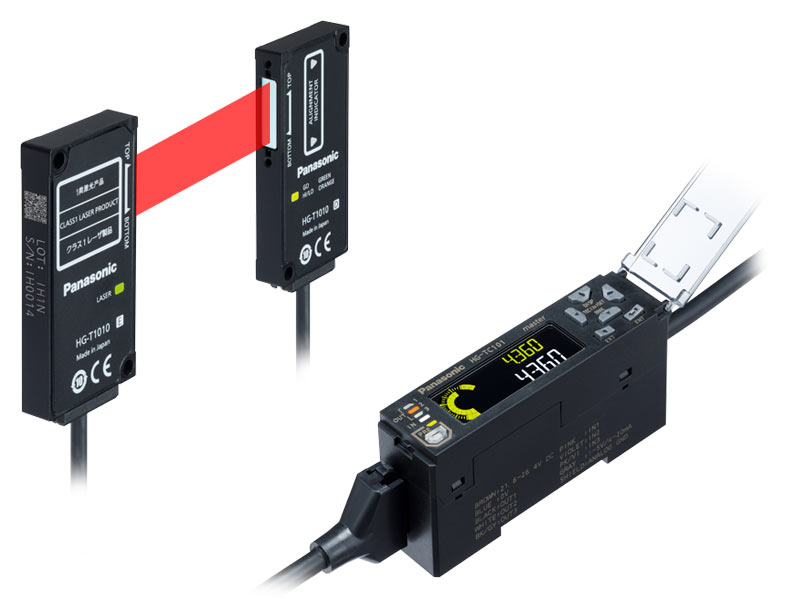

Panasonic HG-T laser thru-beam sensor for measurements

• Laser beam's height - 10mm
• Repeatability - less than 1µm
• Linearity - less than ± 12µm over the whole measurement range

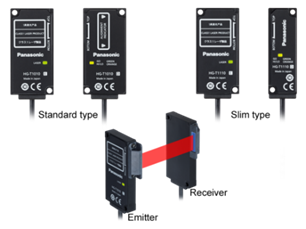

• Flexible mounting - the HG-T series comes with two different sensor heads in different dimensions. The slim type is 10mm less wide than the standard type and fits well into machines with very limited space.

• Electic features - the output type can be selected according to the application requirements (1 - 5V or 4 - 20mA). External inputs allow users to control laser emission, reset the device, or save data during the process. The controller supports high-speed sampling and realizes a frequency of up to 2kHz.
• Excellent performance - thanks to functions like filters, edge detection, light intensity checks and averaging of measurement values (up to 1024), the measurements are very reliable. These functions help you to detect at an early stage when the measuring process does not run smoothly anymore and the system needs to be modified.
• Easy installation - the master-slave system makes it easy to connect up to 15 sensors in series. Another feature increasing ease-of-use is the possibility to copy settings from the master to the slave units. An LED indicates when copying is in progress.
