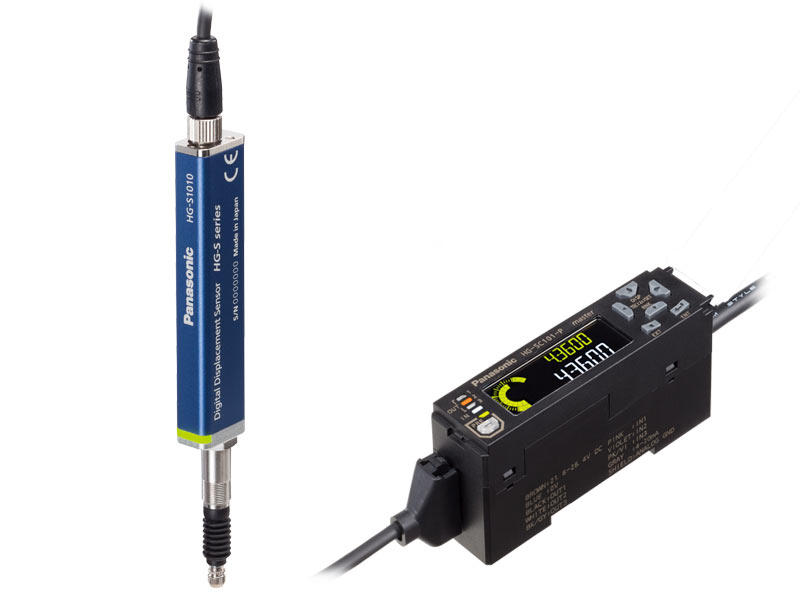

Panasonic HG-S measurement sensor

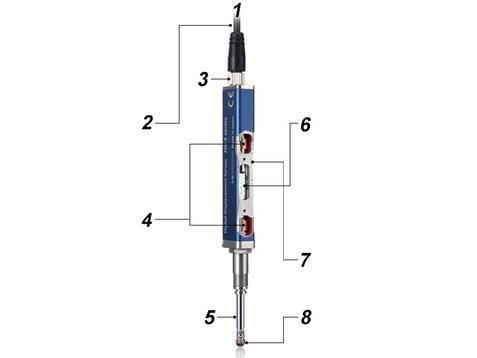

• Slim & robust pencil-type sensor unit
• Bending-resistant cable
• Hot-swappable
• Plain bearings with 2-point support structure
• Resistance to lateral load
• High accuracy: The high-precision sensor head has a resolution of 0.1µm
• Resistance to upward thrust impact
• Tip deviation amount of max. 35µm

1.Dual display for more flexibility
2.All-direction LCD
3.Intuitive circle meter
4.Copy function from master to slave units

• High-speed response of 3ms in combination with any sensor head
• Alarm for upward thrust - an alarm can be set to notify the user of an upward thrust (stroke) that exceeds the set level. This allows you to conduct a preventive maintenance before the sensor head generates a malfunction.
• Easy-to-understand 2-line digital display - it shows head measurement (measured value) and judgment value (calculated value) simultaneously. The high-contrast LCD provides sharp and clear indications and offers a wide viewing angle.

          1.Secondary display line: displays measured value
2.Main display line: displays judgment value

• Intuitive circle meter - values within the maximum and minimum limits are indicated in green and those outside the valid range - in orange.

  1) Higher than maximum value
2) Lower than minimum value

• Copy function - during configuration of the master unit, the copy function symbol lights up for setting items that can be copied to slave units. This significantly reduces the man-hours required for configuration and maintenance.

• Easy tolerance setting

• Serial connection of up to 15 slave units
