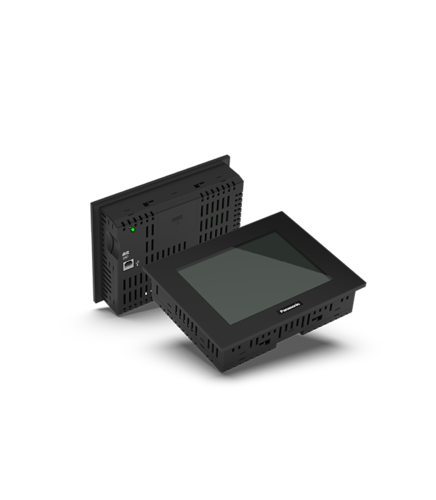

HMI display Panasonic GT32
A clearly readable display with long-life LED backlight. The GT32-R offers many functions, such as recipe function, line / bar graphs, as well as flow display
HMI display Panasonic GT32

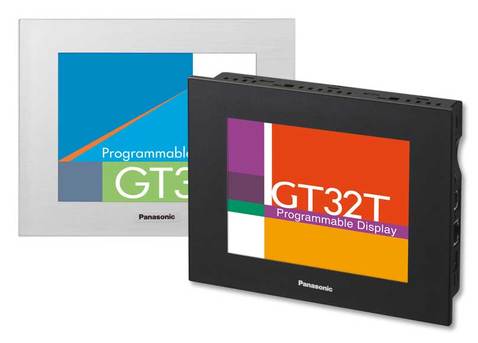

The GT32 series includes 12 different models. You can choose models with monochrome or color display, with an RS232C or RS422/RS485 interface and pure black or hairline silver housing. An SD memory card slot, an Ethernet interface and a sound output function are also available for various models.
Key features:
- TFT monochrome or 4096-color TFT display
- LED backlight
- Resolution: 320 x 240 dots
- USB interface
- SD memory card slot (32GB max.)
- IP67
- High luminance
- Energy saving
- Dimensions: 163.2 x 128.8 x 39.1 mm
- Graph, recipe and flow display function
- Through-function for simultaneous debugging of GT and PLC
- Numerous 3D objects for a realistic appearance
USB interface and SD memory card slot of 16GB as standard equipment - You can connect your PC and GT32 using a commercially available USB cable to transfer screen data.The use of SD memory cards makes copying screen data between GT32 terminals easy. You can also store firmware and sound files on the SD memory card.
.png)
Multi-language function - Using the multi-language function, you can easily translate all texts in the application to other languages.
.png)

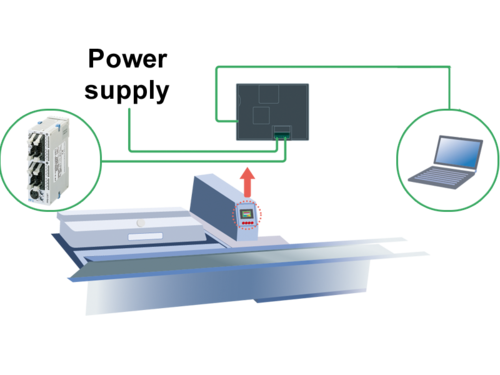

Through function - Communication can be set to take place automatically between the COM and TOOL ports using the “through-function”. The through-function does not require any special settings and is always in standby mode
.png)

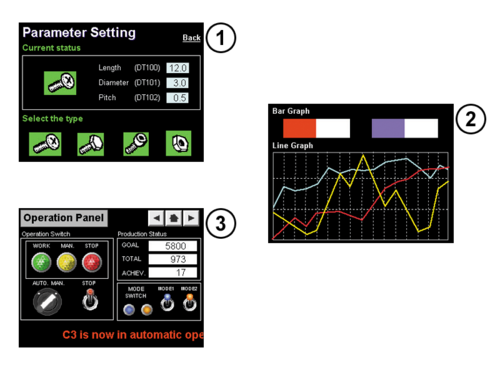

Wide variety of functions:
- Recipe function - Recipes are sets of data containing all variables necessary for executing a certain function. You can use GTWIN's recipe function to enter, change or read values for the variables stored in the recipe.
- Line and bar graphs - These functions allow you to define reference devices (i.e. addresses) in order to generate graphs, allowing you to easily monitor or compare operation status at a glance, for example.
- The flow display function - allows you to display a text or message streaming right to left on the screen like an electronic bulletin board. 128 flowing messages of up to 64 characters can be displayed.
