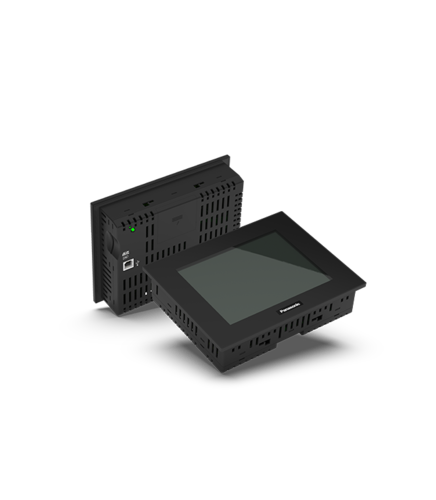

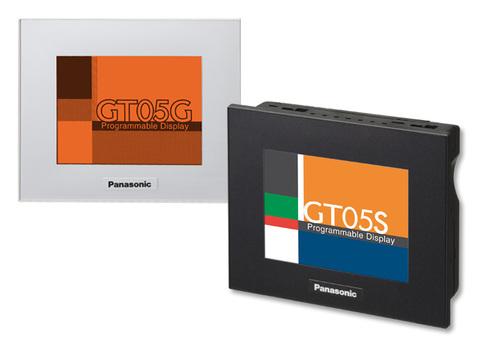

HMI display Panasonic GT05

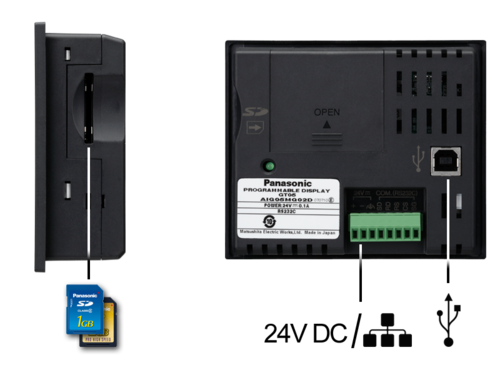

USB interface and memory card slot as standard equipment - You can connect your PC and GT05 using a commercially available USB cable to transfer screen data. The use of SD memory cards makes copying screen data between GT05 terminals easy. You can also store firmware on the SD memory card.

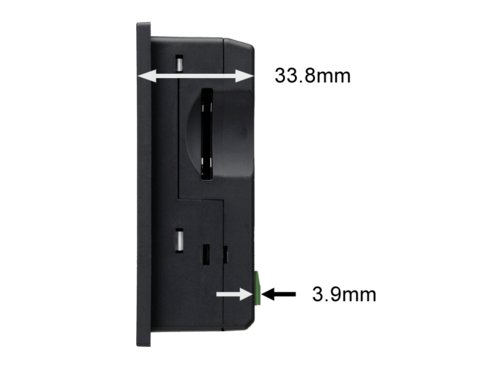

Ultra-thin body – The in-panel depth is a mere 33.8mm (including the attachment fittings). The ultra-thin body fits into a variety of installation locations without spoiling the design of the target equipment.

Multi-language function – Using the multi-language function, you can easily translate all texts in the application to other languages.

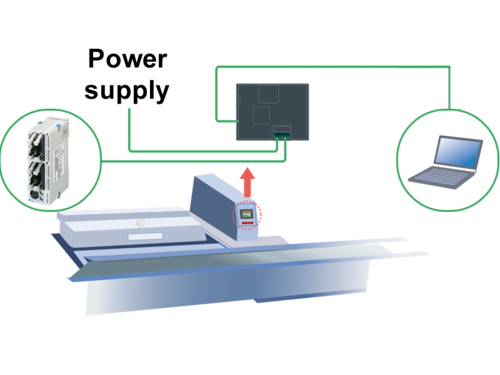

Through function – enables communication between the COM and TOOL ports to be set automatically. The through function does not require any special settings and is always in standby mode.

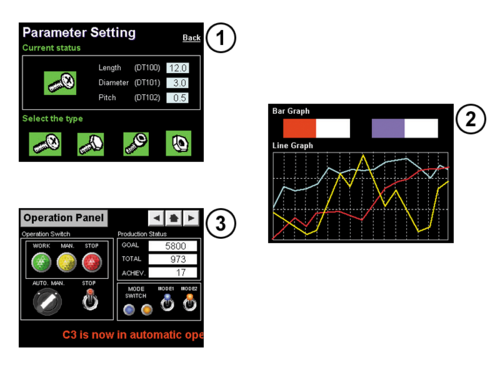

Wide variety of functions:

1. Recipe function - Recipes are sets of data containing all variables necessary for executing a certain function. You can use GTWIN's recipe function to enter, change or read values for the variables stored in the recipe.
2. Line and bar graphs - These functions allow you to define reference devices (i.e. addresses) in order to generate graphs, allowing you to easily monitor or compare operation status at a glance, for example.
3. The flow display function - allows you to display a text or message streaming right to left on the screen like an electronic bulletin board. 128 flowing messages of up to 64 characters can be displayed.

Key features

• 3.5-inch STN monochrome or 4096-color display
• Resolution: 320x240 dots
• USB interface
• SD memory card slot (16GB max.)
• Dimensions: 110 x 92.2 x 33.8mm
• Graph, recipe and flow display function
• Through-function for simultaneous debugging of the GT and PLC
• Numerous 3D objects for a realistic appearance
• Isolated power supply for enhanced reliability
