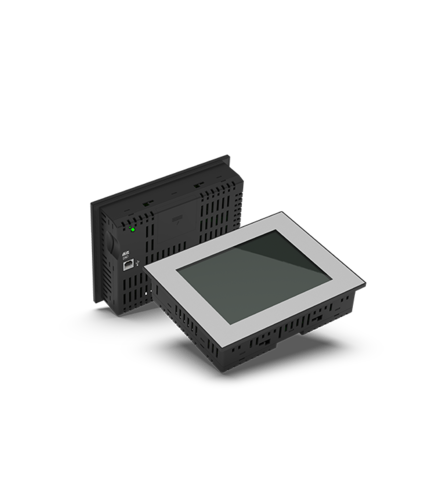

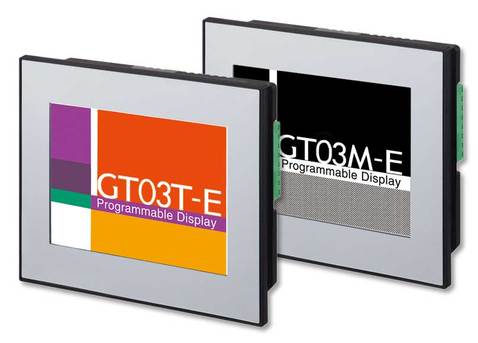

HMI display Panasonic GT03-E

The GT03-E is the industry's smallest body in the class of 3.5 inch screens and is designed for a wide range of applications, e.g. charging station for electric vehicles, car washing machines, coin-operated parking or food filling machines.

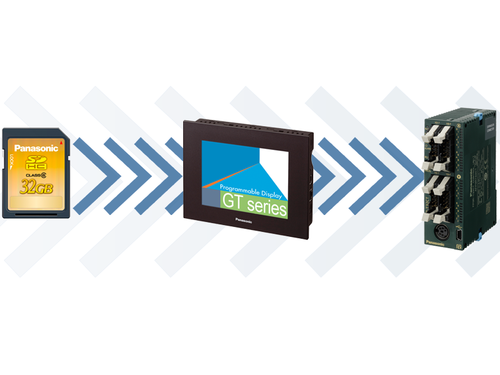

PLC program transfer without the use of a PC - It ispossible to modify PLC programs as well as the GT screenprograms by using an SD/SDHC memory card. SD/SDHC memory cards can be used to easily update PLC programs.

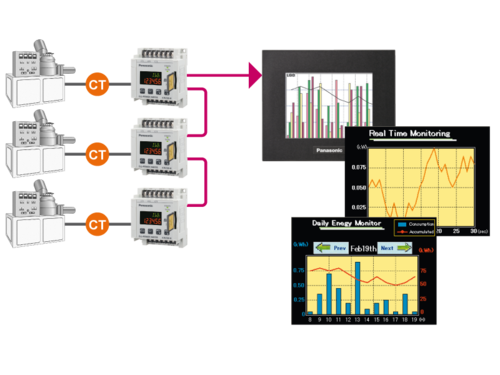

SD logging function for data visualization – GT03-E is capable of collecting electrical power readings of Eco-POWER METERS on an SD/SDHC card automatically and displaying them in a real time graph. The portable SD/SDHC memory cards can be used to store large volumes of data. Data visualization is possible without requiring a PC as a display or a data logger for collecting data. One bar graph has a maximum of eight bars and can be combined with line graphs. The following three conditions can be selected to trigger an operation to save log data:

1. Specified time
2. Specified cycle
3. Specified condition

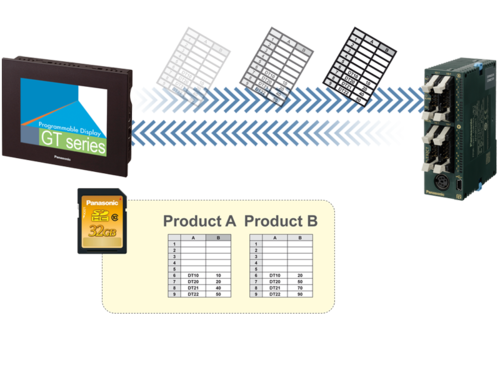

SD recipe function - For high-mix production, recipe data of up to 64 types and 4096 devices in total can be easily set on a PC. The created recipe data are saved on an SD/SDHC memory card, and the specified data can be written or read from a PLC.

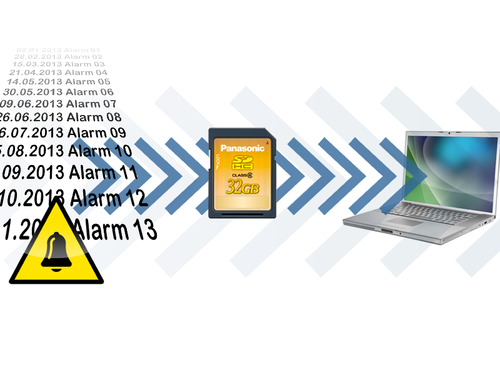

Saving alarm history data on an SD/SDHC memory card - The alarm history data stored in the GT built-in memory can be saved on an SD/SDHC memory card, making it possible to easily control problems on a PC.

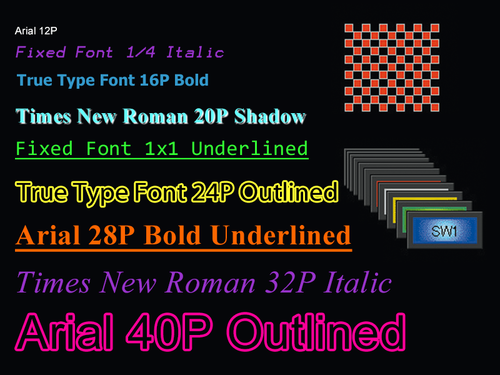

Highly flexible screen design - The GT series displays use an analog touch panel.

Newly equipped with an FP monitoring function - The setting status and data of our FP series PLCs connected to GT panels can be monitored and edited on the GT screen. This function allows you to check equipment operation in actual environments without creating screens in advance or connecting the unit to a PC. Furthermore, the efficiency of equipment startup and daily maintenance work is increased.

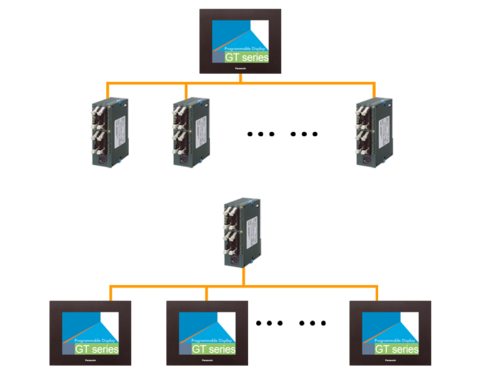

Multiple GT displays can be connected to our FP series PLCs

• GT link function: Up to 32 GT displays can be connected to one PLC unit without communication programs. The same screen operation is possible at a conveyor line or other remote locations, and the number of PLC units can be reduced, cutting the production process costs.
• Connectivity with multiple PLCs - Up to 31 PLC units can be connected to one GT unit. Progress in multiple production lines can be centrally monitored and controlled via one GT unit.

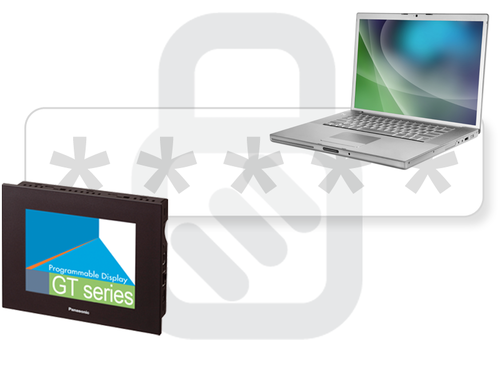

• Enhanced security with password protection: Password protection and operation security functions protect the technical plant data in the display unit and control the authorization for operation.
• Password protection function: The screen data upload operation can be restricted by using passwords to protect the technical plant data in the display unit.

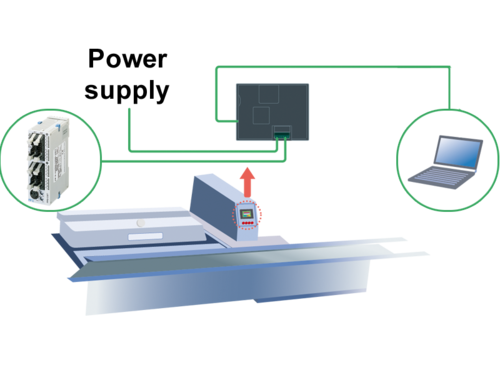

• High-efficiency operation with through function: This function allows operators to simultaneously carry out the transfer of screen data of a GT series display and the debugging of our FP series PLCs connected to the display. GT32T1 supports Ethernet connection, which allows the through function to be controlled from a remote location.

• Easy-to-switch language: normally, screens were created for each language. With the new languages witching function, data can be registered in multiple languages (up to 16) for each part. The characters can be easily edited with Microsoft Excel® and then imported.
