HMI display Panasonic GT02

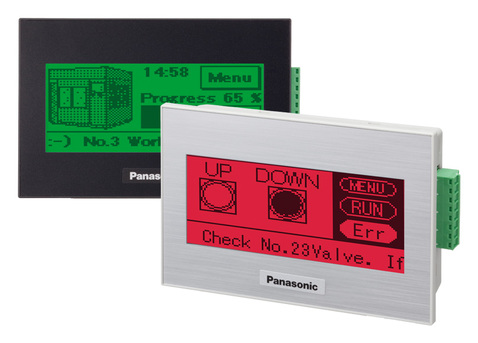

The GT02 offers a host of innovative functions. The brilliant 3.8'' graphical touch display is illuminated by a maintenance-free 3-color LED backlight which comes in 2 variations: green/orange/redandwhite/pink/red. The first SD memory card slot in the three-inch class allows for easy screen data transfer, data logging and storage.

12 different models are offered/available, which differ in:

• Communication interface (RS232C or RS422/RS485),
• Housing (pure black or hair line silver),
• Powersupply (5V or 24V DC) and
• SD memory card slot (with or without)

Key featuresof GT02:

• 3.8'' STN monochrome display
• Resolution: 240x96 dots
• Degree of protection: IP67

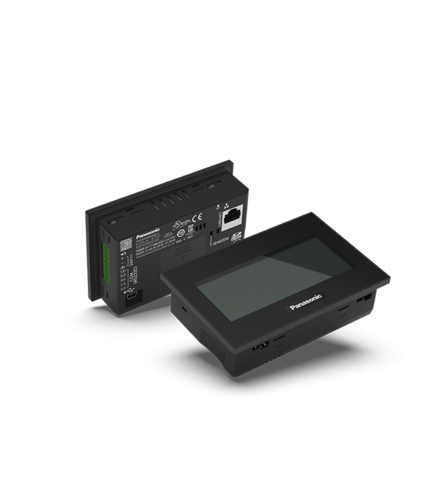

• Mini USB interface
• SD/SDHC memory card slot for cards up to 32GB, class 10 max. (GT02MQ2/GQ2)
• Dimensions: 112x74x27mm

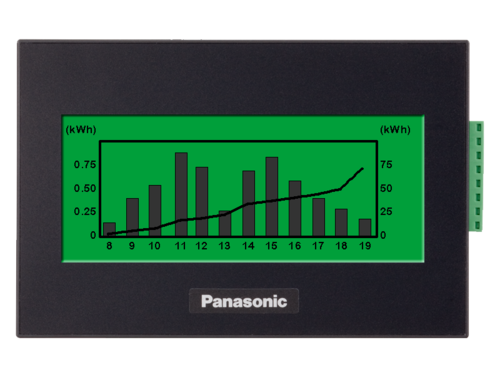

• Graph, recipe and flow display functions
• Through function for simultaneous debugging of the GT and PLC

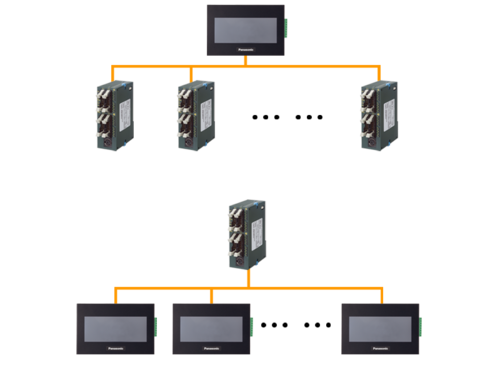

• GT link function - up to 32 Panasonic HMIs can be connected to one PLC
• Multiple PLCs - up to 31 Panasonic PLCs can be connected to one HMI
• Data logging function
• Isolated power supply for enhanced reliability

SD/SDHC memory card with a maximum of 32GB - The use of these memory cards makes copying screen data between GT02 terminals easy. You can also store firmware, PLC or GT program files, log files, etc. on the SD/SDHC memory card.

Logging function - Values of Eco-POWER METERS and PLCs can be read and saved in CSV format on an SD or SDHC memory card. This function serves as a data logger to, for example, monitor power consumption data of Eco-POWER METERS or collect production quantity and operation status data from PLCs so that the data can be used for preparing monthly reports or problem analysis reports.

Alarm history data – Alarm history data, which is stored in the GT built-in memory, can be saved on the SD/SDHC card allowing you to analyze problems easily via PC.

Mini USB interface – it allows fast data transfer without requiring a dedicated cable.

SD recipe function - For high-mix production, you can store hundreds of recipes on the SD/SDHC memory card. Via GT, you can specify which recipe data to write to or read from a PLC.

Through function – enables communication between the COM and TOOL ports to be set automatically. The through function does not require any special settings and is always in standby mode.

Multi connection - As a new feature, one GT02 unit can be connected to multiple PLC units. In combination with the GT link function, a centralized monitoring or remote function operation of multiple machines is possible from one location.
